ZZWP self operated temperature control valve

ZZWP self operated temperature control valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

ZZWP self-operated temperature control valve is composed of temperature sensor and control valve. It is a kind of energy-saving product which can automatically adjust the temperature of controlled medium without external energy. The product is suitable for automatic temperature control in various heat exchangers with various gases, steam, hot water, oil and so on. Wide range, easy to adjust, continuous temperature setting, over-temperature protection, temperature setting convenience and other advantages. Widely used in urban heating, heating systems and power, oil, metallurgy, pharmaceutical, boilers and other industrial sectors.


Product features of self operated temperature control valves


The valve does not need external energy, such as electricity or compressed air, safe and reliable. Temperature sensitive liquid expansion uniform, proportional regulation control, high control precision, stable work, effective energy saving, balanced valve body design, so that the valve can work under greater pressure difference, linear or equal 100 specific flow characteristics, temperature setting operation simple and convenient, small size, light weight, installation It is convenient.


Working principle of self operated temperature control valve


Self-operated temperature control valve can be divided into heating type, cooling type, confluence (shunt) temperature control type. It is regulated by the principle of thermal expansion of sensitive liquid, cold shrinkage and liquid incompressibility. The temperature sensor is inserted into the medium which needs to control temperature, and when the temperature of the medium rises, the temperature sensitive liquid is heated. The body expands, the force overcomes the spring resistance, pushes the valve core downward displacement, the valve tends to close state, thus reducing the flow of heat medium; otherwise, when the medium temperature is lower than the set temperature, the temperature sensitive liquid shrinks, the reset spring pushes the valve core open state, increases the flow rate of heat medium, so that the temperature of the controlled medium tends to rise. Thus the temperature of the controlled medium is always kept within the allowed temperature.


Main parts material of self operated temperature control valve


Material code
C(WCB)
P(304)
R(316)
main
Spare parts
Body, bonnet
WCB(ZG230-450)
ZG1Cr18Ni9Ti(304)
ZG1Cr18Ni12Mo2Ti(316)
Valve core and valve seat
1Cr18Ni9Ti(304)
1Cr18Ni9Ti(304)
1Cr18Ni12Mo2Ti(316)
Stem
2Cr13
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti
Corrugated pipe sleeve
1Cr18Ni9Ti,1Cr18Ni12Mo2Ti
Balanced Bellows
1Cr18Ni9Ti
Warm bag
H62,1Cr18Ni9Ti
capillary
H62,1Cr18Ni9Ti
Joint
H62,1Cr18Ni9Ti


Main technical parameters of self operated temperature control valve
Nominal pathmm
15
20
25
32
40
50
65
80
100
125
150
200
Rated flow rate CoefficientKv
Single seat
5
7
11
20
30
48
75
120
190
300
480
760
Double seat
12
22
33
53
83
132
209
330
528
836
Sleeve
11
20
30
48
75
120
190
300
480
760
Rated stroke L(mm)
6
8
10
14
20
35
Maximum allowable pressure difference(MPa)
1.6
1.5
0.5
Temperature adjustment range(℃)
0-70,50-120,100-170,150-220,200-270
Adjustment precision(%)
±5
Allowable overload value(℃)
The upper limit of the above Temperature adjustment range is 50.
Ambient temperature(℃)
-40~+80
installJoint
G1"
capillarylength(m)
3,5,8
Allowable leakage
Hard seal(L/h)
Single seat less than 10-4 * valve rated capacity (grade IV); double seat, sleeve less than 5 * 10-3 valve rated capacity (II level);
Soft seal(ml/min)
0.15
0.15
0.15
0.30
0.30
0.45
0.60
0.90
1.70
4.0
4.0
6.75

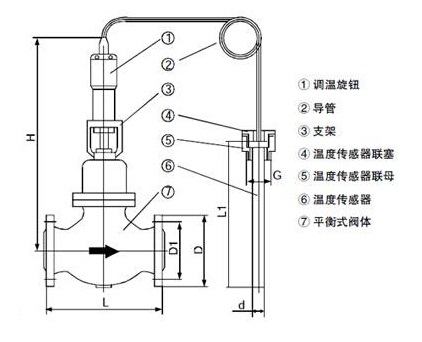

Main dimensions of self operated temperature control valves
Nominal path
DN(mm)
L
(mm)
D
(mm)
L1
(mm)
H
(mm)
G
(mm)
Ductal length
(m)
D
(mm)
D1
(mm)
Bolt hole
(n-Ф)
32
180
25
430
380
1-1/4"
3
135
100
4-18
40
200
25
430
410
1-1/4"
3
145
110
4-18
50
230
25
430
450
1-1/4"
3
160
125
4-18
65
290
25
430
490
1-1/4"
3
180
145
4-18
80
310
25
430
530
1-1/4"
3
195
160
8-18
100
350
25
430
560
1-1/4"
3
215
180
8-18
125
395
25
550
600
1-1/4"
4
245
210
8-18
150
470
25
550
640
1-1/4"
4
280
240
8-23
200
600
25
550
690
1-1/4"
4
335
295
12-23
Note: If users need products with nominal pressure PN2.5 MPa or Nominal path DN15, DN20, DN25, please inquire our company for size.

The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.ZZWP self operated temperature control valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
