ZAZQ (X) electric three way regulating valve

ZAZQ (X) electric three way regulating valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

ZAZQ electric three-way combined flow control valve/ZAZX electric three-way shunt control valve has two types of combined flow and shunt. It is composed of DKZ electric actuator and three-way combined flow or three-way shunt control valve. It is powered by power supply and receives unified standard signal of 0-10 mA DC or 4-20 mA Dc to drive the valve opening corresponding to the operation signal. The purpose of the confluence valve is to divide a fluid into two fluids. The shunt valve can only be used, but when DN is less than 80, the confluence valve can be used for shunting. It can replace two single and two seat regulating valves, saving investment and occupying small space. The three way regulating valve is usually used for two kinds of medium adjustment of heat exchangers and a simple proportion adjustment.


Main technical parameters of electric three way regulating valve


公稱通徑mm
合流
25
32
40
50
65
80
100
125
150
200
250
300
分流
80
100
125
150
200
250
300
額定流量系數Kv
合流
8.5
13
21
34
52
85
135
210
340
535
800
1260
分流
85
135
210
340
535
800
1260
公稱壓力 MPa
1.6 4.0 6.0
流量特性
直線
執

機
構
Ⅱ型
DKZ-310
DKZ-310
DKZ-410
DKZ-510
DKZ-510
Ⅲ型
DKZ-510C
DKZ-310C
DKZ-410C
DKZ-510C
DKZ-510C
出軸推力(N)
4000
4000
6400
16000
16000
行程mm
16
25
40
60
100
上閥蓋型式
1.6
1.0
2.5
1.6
1.5
1.0
0.65
0.4
0.3
0.16
0.26
0.18
允許壓差(MPa)
普通式(常溫型),熱片式(中溫型)
介質溫度℃
-40~230℃(常溫型),散熱片式230~450℃(中溫型),特殊訂貨-100~600℃
可調比
30:1
法蘭標準
鑄鐵按JB78-59,鑄鋼按JB79-59
輸入阻抗
Ⅱ型:200?、笮停?50
出廠狀態
電開(對上閥座而言),如需電關,訂貨時應注明


Performance index of electric three way regulating valve


項目
指標值
基本誤差%
≤±3.5
回差%
≤2.5
死區%
≤3.0
始終點偏差%
電開、電關
±2.5
±2.5
允許泄量L/H
符合JB/T7387-94Ⅲ 級 小于閥的額定容量×10-3

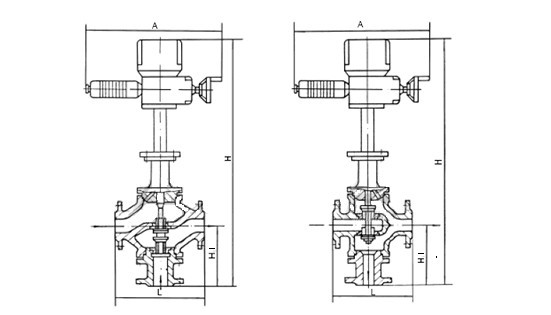

Main dimensions of electric three way regulating valve


公稱
通徑
DN
A
L
H
H1
分流
合流
PN1.6
PN4.0
PN6.4
分流
合流
PN1.6
PN4.0
PN6.4
PN1.6
PN4.0
PN6.4
普通型
熱片型
普通型
熱片型
25
520
490
185
190
200
715
865
140
150
160
32
520
490
200
210
210
721
871
150
160
170
40
520
490
220
230
235
733
883
160
170
180
50
520
490
250
255
265
748
898
180
190
200
65
520
520
275
285
295
839
999
200
220
220
80
520
520
305
310
320
872
1032
842
1002
225
250
265
210
230
240
100
520
520
350
355
370
896
1056
846
1006
245
275
285
220
250
260
125
520
520
410
425
440
947
1162
897
1112
284
320
325
260
300
300
150
520
520
450
460
475
947
1162
897
1112
305
340
340
280
320
320
200
520
520
550
560
570
965
1180
905
1120
350
400
410
320
380
380
250
520
520
670
740
750
300
520
520
770
805
820
