ZJHQ (X) pneumatic thin film three way regulating valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
ZJHQ pneumatic three-way combined flow control valve, ZJHX pneumatic three-way shunt control valve, by pneumatic film multi-spring actuator and three-way valve.
The new type ZHA / B multi-spring actuator replaces the old type ZMA / B actuator, which has the advantages of low height, light weight, easy installation and maintenance.
The three-way valve spool structure adopts a cylinder thin wall window and adopts the side direction of the spool. It can be used in proportional control valve or bypass regulation, especially in the fluid temperature control system of heat exchanger in petroleum industry. One three-way valve can replace two single-seat valves or two-seat valves, occupying small space, saving installation pipeline and cost.
Pneumatic three-way control valve is widely used to accurately control gas, liquid and other media parameters such as pressure, flow, temperature, liquid level, etc., so as to keep it at a given value. Confluence valve can mix two kinds of fluids through three-way valve into one kind of fluid flow, and diversion valve can divide one kind of fluids into two ways through three-way valve. When the diameter DN < 65mm, due to the small unbalanced force of the medium acting on the valve spool mouth, the diversion valve can be replaced by a confluence valve.
This series of products has two kinds of three way confluence and three way shunting. Nominal pressure PN1.6, 4.0, 6.4 MPa; Nominal diameter DN25-300, suitable for fluid temperature - 60 450, permissible leakage level IV, flow characteristics of linear, parabolic two kinds.
Technical parameters and performance of pneumatic three way regulating valve
valve body
型式 | 直通鑄造球型閥 |
公稱通徑 | 合流閥:25~300mm、分流閥:80~300mm |
公稱壓力 | PN1.6、4.0、6.4MPa |
法蘭標準 | JB/T79.1-94、79.2-94等 |
材料 | 鑄鋼(ZG230-450)、鑄不銹鋼(ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti)等 |
上閥蓋 | 標準型-17~+230℃、散熱型+230~+450℃、波紋管密封型-40~+350℃ |
壓蓋型式 | 螺栓壓緊式 |
填料 | V型聚四氟乙烯填料、含浸聚四氟乙烯石棉填料、石墨填料 |
閥芯型式 | 薄壁圓筒型閥芯 |
流量特性 | 拋物線特性和線性特性 |
材料 | 不銹鋼(1Cr18Ni9Ti、1Cr18Ni12Mo2Ti、17-4PH、9Cr18、316L)、 不銹鋼堆鎳焊司太萊合金、鈦和耐腐蝕合金等。 |
型式 | ZHA/B多彈簧薄膜執行機構 | ||||
型號 | ZHA/B-22 | ZHA/B-23 | ZHA/B-34 | ZHA/B-45 | ZHA/B-56 |
you效面積cm2 | 350 | 350 | 560 | 900 | 1400 |
行程mm | 10、16 | 25 | 40 | 40、60 | 100 |
彈簧范圍KPa | 20~100(標準)、20-60、60-100、40-200、80-240 | ||||
膜片材料 | 丁腈橡膠夾尼龍布、乙丙橡膠夾尼龍布 | ||||
供氣壓力 | 140~400KPa | ||||
氣源借口 | RC1/4″ | ||||
環境溫度 | -30~+70℃ |
Valve action form
Gas close (B) - valve position is opened (FO) when gas is lost, and K (gas) is opened (FC) when the gas is lost.
Enclosure
Locator, air filter pressure reducer, retaining valve, stroke switch, valve position conveyor, handwheel mechanism, etc.
Performance of pneumatic three way regulating valve
項 目 | 不帶定位器 | 帶定位器 | ||
基本誤差% | ±6.0 | ±1.5 | ||
回 差% | ≤5 | ≤1.5 | ||
死 區% | ≤4 | ≤0.6 | ||
始終點偏差% | 氣開 | 始點 | ±2.5 | ±1.5 |
終點 | ±6.0 | |||
氣關 | 始點 | ±6.0 | ||
終點 | ±2.5 | |||
額定行程偏差% | ≤2.5 | |||
泄露量1/h | 0.1%×閥額定容量 | |||
可調范圍R | 30:01:00 |

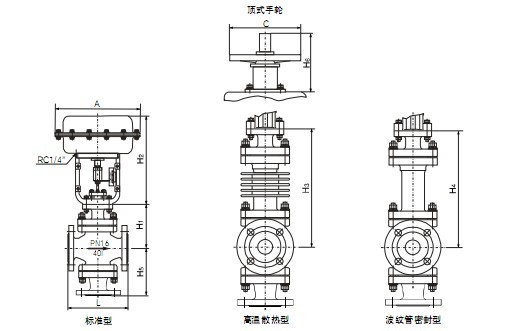

公稱通徑DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | ||
L | PN16/40 | 185 | 200 | 220 | 250 | 275 | 300 | 350 | 410 | 450 | 550 | 640 | 720 | |
PN64 | 200 | 210 | 235 | 265 | 295 | 320 | 370 | 440 | 475 | 570 | 670 | 750 | ||
A | 285 | 285 | 285 | 285 | 360 | 360 | 360 | 470 | 470 | 470 | 580 | 580 | ||
H1 | PN16/40 | 155 | 175 | 180 | 200 | 235 | 250 | 260 | 330 | 350 | 420 | |||
PN64 | 165 | 175 | 185 | 205 | 245 | 255 | 270 | 335 | 365 | 430 | ||||
H2&, amp;, amp;, amp;, lt;, /, P> | 298 | 298 | 298 | 298 | 380 | 380 | 380 | 510 | 510 | 510 | ||||
H3 | PN16/40 | 235 | 247 | 256 | 268 | 364 | 384 | 394 | 465 | 470 | 540 | |||
PN64 | 245 | 265 | 268 | 278 | 381 | 390 | 400 | 470 | 485 | 540 | ||||
H4 | PN16/40 | 364 | 425 | 430 | 445 | 660 | 680 | 690 | 748 | 740 | 780 | |||
PN64 | 364 | 425 | 435 | 450 | 665 | 690 | 700 | 750 | 750 | 795 | ||||
H5 | 合流 | PN16/40 | 140 | 150 | 160 | 180 | 200 | 210 | 220 | 260 | 280 | 320 | 474 | 580 |
PN64 | 150 | 170 | 180 | 200 | 220 | 240 | 260 | 300 | 320 | 380 | 474 | 580 | ||
分流 | PN16/40 | — | — | — | — | — | 225 | 245 | 285 | 305 | 350 | 540 | 612 | |
PN64 | — | — | — | — | — | 265 | 285 | 325 | 345 | 410 | 540 | 612 | ||
C | 220 | 220 | 220 | 220 | 270 | 270 | 270 | 320 | 320 | 320 | ||||
H6 | 180 | 180 | 180 | 180 | 236 | 236 | 236 | 310 | 310 | 310 | ||||
重量 | PN16/40 | 28 | 30 | 39 | 46 | 75 | 81 | 98 | 148 | 188 | 285 | |||
PN64 | 32 | 37 | 49 | 61 | 92 | 98 | 119 | 191 | 222 | 330 |
Note: 1. The weight of the table is standard data without attachments, and side mounted handwheels can also be installed.
2, valve flange and flange end distance can be customized according to user standards, such as: ANSI, JIS, DIN and other standards.
