ZDLP electronic electric single seat regulating valve

ZDLP electronic electric single seat regulating valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

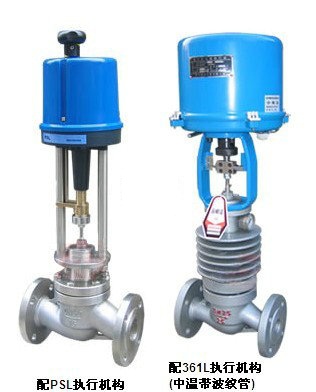

ZDLP electronic electric single-seat regulating valve is composed of PS series and 3610 series straight-stroke electric actuator and low flow resistance through single-seat valve. (can also be equipped with other brand direct travel agencies). The electric actuator is an electronic integrated structure with servo amplifier, input control signal (4-20mADC or 1-5VDC) and power supply can control the valve opening to adjust the pressure, flow, liquid level, temperature and other parameters. It has the characteristics of sensitive action, simple connection, large volume, small volume and high adjustment precision. The control accuracy and performance are obviously improved than that of DKZ. The single seat valve is suitable for occasions where the leakage is strict, the pressure difference between the front and back of the valve is low, and there is a certain viscosity. ZDLP electronic electric single-seat regulating valve is widely used in electric power, metallurgy, chemical industry, petroleum, environmental protection, light industry, equipment and other industries.
Main technical parameters of electronic electric single seat regulating valve


Nominal pathmm
G3/4”
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
Seat diametermm
3
4
5
6
7
8
10
12
15
20
26
32
40
50
66
80
100
125
150
200
250
300
可與本公司
商洽生產(chǎn)
Rated discharge coefficientkv
Linear type
0.08
0.12
0.20
0.32
0.5
0.8
1.8
2.8
4.4
6.9
11
17.6
27.5
44
69
110
176
275
440
690
1000
1600
Equal percentage
1.6
2.5
4
6.3
10
16
25
40
63
100
160
250
400
630
900
1440
Nominal pressure(MPa)
0.6,1.6, 2.5, 4.0, 6.4
Trip(mm)
10
16
25
40
60
100
Flow characteristics
straight line
straight line,Equal percentage,F(xiàn)ast open
working temperature℃
-40 ~ 230 C (Chang Wenxing), heat sink 230~450 C (medium temperature), special order -100 ~ 600 C
Flange size
It meets JB78-59 and JB79-59 standards and can be ordered and produced according to JB/79.1-94, JB/79.2-94, ANSI, JIS, DIN and other standards.
body material
WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M
Valve core material
1Cr18Ni9,SS304,0Cr18Ni12Mo2Ti,SS316,ZG1Cr18Ni9Ti
Valve type
Straight through single seat casting ball valve
Upper bonnet type
Ordinary type (room temperature), hot plate (medium temperature), long neck type (low temperature).
Equipped with electric actuator type.
PSL
PSL-201
PSL-202
PSL-204
PSL-208
PSL-312
PSL325
361L
361LSA-08
361LXA-08
361LSA-20
361LSB-30
361LSB-
50
361LSC-65
361LSC-99
Explosion-proof type
361LXA-20
361LXB-30
361LXB-
50


Note: 1. It can provide users with ANSI, JPI, JPI and other local flange standard products, flange spacing according to user needs to determine.


2. working temperature, nominal pressure, nominal diameter beyond the list of products can be resolved with our company.


Electronic actuator for electric single seat control valve


Model
Rated output forceN
speedmm/s
technical parameter
PSL
361L
PSL
361L
PSL
361L
PSL
361L
201
361LSA-08
361LXA-08
1000
800
800
0.25
4.2
4.2
Power supply: AC220V 50Hz Input signal: DC4-20mA DC1-5V (shielded wire for signal line) Output signal: DC4 ~ 20mA Protection level: IP67 Handwheel
Power supply: AC220V 50Hz Input signal: DC4-20mA DC1-5V (shielded wire for signal line) Output signal: DC4 ~ 20mA Protection level: IP55 Flameproof sign: Exd II BT4 Handle with a handle
202
361LSA-20
361LXA-20
2000
2000
2000
0.50
2.1
2.1
204
361LSB-30
361LXB-30
4500
3000
3000
0.50
3.5
3.5
208
361LSB-50
361LXB-50
8000
5000
5000
1.00
1.7
1.7
312
361LSC-65
12000
6500
0.60
2.8
325
361LSC-99
25000
10000
1.0
2.0


Performance index of electronic electric single seat regulating valve


Basic error%
Match 3610L + 2.5; with positioner + 1.
Return difference%
Match 361L + 2; match PSL + 1.
dead zone%
1.0
Always point deviation%
Electric opening
Starting point
±2.5
End
±2.5
Electrical closing
Starting point
±2.5
End
±2.5
Adjustable range
50:1
Rated Trip deviation%
2.5
LeakageL/H
JB/T7387-94 IV class is less than the rated capacity of valve 10-4 *


Allowable differential pressure of electronic electric single seat regulating valve


Nominal path(mm)
20
25
40
50
65
80
100
150
200
250
300
Valve seat diameter(mm)
10
12
15
20
25
32
40
50
65
80
100
125
150
200
250
300
Executive Agency
允許壓差△P(MPa)
To configurePSL
PSL202
6.4
6.4
6.4
4.90
3.14
1.92
1.23
0.78
PSL204
4.31
2.76
1.76
1.04
0.69
0.44
PSL208
1.86
1.23
0.78
0.50
0.35
0.20
PSL320
1.26
0.87
0.49
0.32
0.22
To configure361L
361LSA-20
6.4
6.4
6.4
4.90
3.14
1.92
1.23
0.78
361LSB-50
4.79
3.06
1.96
1.16
0.76
0.49
361LSC-65
1.51
0.99
0.64
0.41
0.28
361LSC-99
0.63
0.44
0.25
0.16
0.11

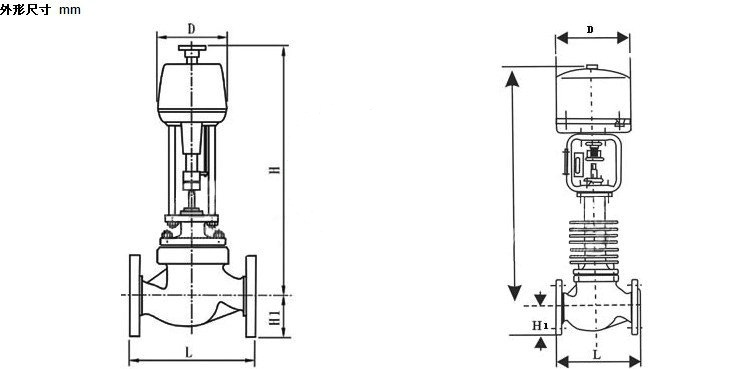

Main dimensions of electronic electric single seat regulating valve


公通徑(mm)
20
25
40
50
65
80
100
150
200
250
300
L(mm)
PN1.6MPa
181
184
222
254
276
298
352
451
600
720
820
PN4.0MPa
194
197
235
267
292
317
368
473
600
760
850
PN6.4MPa
206
210
251
286
311
337
394
508
650
800
870
H1(mm)
67
72
87
92
105
110
127
174
209
300
350
To configurePSL
H(mm)
普通型
738
750
765
767
845
857
875
1025
1045
1252
1545
散熱片型
888
900
930
937
1025
1042
1085
1285
1305
1805
1825
D(mm)
176
225
重量(KG)
15
17
24
29
49
61
82
150
211
370
570
To configure361L
H(mm)
普通型
501
513
650
652
770
782
800
1080
1125
1345
1365
散熱片型
651
663
815
822
950
967
1010
1340
1385
1625
1645
D(mm)
225
310
重量(KG)
23
24
39
44
64
76
97
203
264
418
618


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。
