J61H/Y welding stop valve

J61H/Y welding stop valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

Welded globe valves are suitable for cutting off or switching on the pipelines of petroleum, chemical, hydraulic and thermal power plants with nominal pressure of PN10.0-32.0 Mpa and P (54) 100V-P (57) 170V and working temperature of<540 ((P (57) 170V) 570 (?) Suitable medium is water, oil, steam, etc. The ways of operation are manual, gear drive, electric and so on.




Structural features of welded globe valves


1. Product design and manufacture according to E101 and JB/T3595-93 standards, reasonable structure, good performance, beautiful shape.


2. the valve cavity adopts a pressure self tightening seal structure, and the sealing performance is better. The two ends of the branch pipe are welded structures. Welding groove can be matched according to standard or user requirements.


3. The sealing surface of disc and seat is made of Stellite cobalt-based cemented carbide surfacing, which is wear-resistant, high temperature-resistant, good abrasion resistance and long service life.


The 4. stem is quenched and tempered with surface nitriding. It has good corrosion resistance and abrasion resistance.


5. the depth of the gland cover is reasonable, the filler is corrosion inhibitor, and the sealing is reliable.


7. Electric globe valve is equipped with DZW series valve electric device, with small shell, light weight, full function, beautiful appearance and other characteristics, and can be used with the program-controlled computer, can also be selected according to user requirements electric device.




Standard Specification for welded globe valves


Design and manufacture: E101, JB/T3595-93


Pressure temperature: E101, JB/T3595


Structure length: E101


Butt welding joint size: GB/T15198.3-95


Inspection and experiment: GB/T13927-92




Main performance parameters of welded globe valves


產品型號
公稱壓力
試驗壓力
工作壓力
工作溫度(℃)
適用介質
殼體強度
密封
P54
P55
P57
J61H/Y-100
10
15
11
≤450
水、蒸汽、油品
J61H/Y-200
20
30
22
J61H/Y-250
25
38
28
J61H/Y-320
32
48
36
J61Y-P54/100V
30
22
10
≤540
蒸 汽
J61Y-P54/140V
38
28
14
J61Y-P54/170V
48
36
17
10
J61Y-P55/100V
38
28
14
≤555
J61Y-P55/140V
48
36
17
J61Y-P55/170V
53
39
10
J61Y-P57/100V
48
36
14
≤570
J61Y-P57/140V
55
40
17
J61Y-P57/170V
60
44


Welding stop valve main parts material


零件名稱
閥體
閥蓋
閥桿
閥瓣
密封面
填料
閥桿螺母
手輪
緊固體
J61H型
25
WCB
25
40Cr
鉻不銹鋼
鉻鉬鋁鋼化
鉻不銹鋼
鉻不銹鋼
柔性石墨
鋁青銅
可鍛鑄鐵
優良碳鋼鉬鋼
J61Y型
25
WCB
25
40Cr
鉻不銹鋼
鉻鉬鋁鋼化
25
硬質合金
柔性石墨
鋁青銅
可鍛鑄鐵
優良碳鋼鉻鉬鋼
J61Y-P54型
ZG20CrMolV 12CrlMolV
12C r1MolV
20CrMol V
25CrlMolV
12CrlMolV
硬質合金
柔性石墨
鋁青銅
可鍛鑄鐵
鉻鉬鋼
J61Y-P55型
ZG25CrMol V12CrlMolV
12C r1MolV
20CrMol V
25CrlMolV
12C r1MolV
硬質合金
柔性石墨
鋁青銅
可鍛鑄鐵
鉻鉬鋼
J61Y-P57型
ZGl5CrMolV 12CrlMolV
12CrlMolV
20CrMol V25CrlMolV
12CrlMolV
硬質合金
柔性石墨
鋁青銅
可鍛鑄鐵
鉻鉬鋼

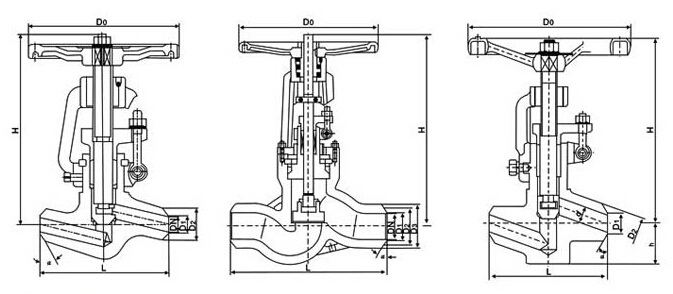

Main dimensions of welded globe valves


公稱通徑DN
主要外形尺寸和連接尺寸
重量
L
D1
D2
D3
α
H
D0
J61(H.Y)-25、40、64、100、200、250、320 J61Y-P54/100V、P54/140V、P54/170V
10
120
12
25
40°
185
140
2.8

15
170
17
36
40°
247
200
7.5

20
170
22
42
40°
248
200
9

25
170
26
42
40°
248
240
9.5

32
170
31
44
40°
248.5
280
15

50
250
50
82
32°
450
320
60

50
350
50
82
32°
450
320
64

65
430
69
100
110
32°
669
400
74
80
470
84
108
130
32°
669
450
112.5
100
560
107
144
165
32°
755
500
178.5
注:DN50為兩種型號。
J61Y-P55/100V、P55/140V、P55/170V J61Y-P57/100V、P57/140V、P57/170V
10
120
12
28
40°
189
140
3

15
170
17
40
40°
250
200
9

20
170
22
46
40°
252
200
11

25
170
26
46
40°
254
240
13

32
170
31
49
40°
254
280
17

50
250
50
90
32°
453
320
68

50
350
50
90
32°
455
320
72

65
430
69
104
115
32°
630
400
83
80
470
84
110
140
32°
672
450
118
100
560
17
148
170
32°
761
500
165
