WJ44H German standard right angle BELLOWS GLOBE VALVE

WJ44H German standard right angle BELLOWS GLOBE VALVE
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

WJ44H German standard right-angle bellows globe valve is suitable for cutting off or connecting pipeline medium in various working conditions of petroleum, chemical, pharmaceutical, chemical fertilizer and electric power industry with nominal pressure PN1.6-16MPa and working temperature-29-350 C.


Structural characteristics of German standard right angle BELLOWS GLOBE VALVE


1. The product is reasonable in structure, reliable in sealing, excellent in performance and beautiful in appearance.


2, sealing surface hardfacing Co based cemented carbide, wear resistance, corrosion resistance, good friction resistance, long service life.


3. The quenching and tempering of the valve stem and surface nitriding have good corrosion resistance and friction resistance.


4, double seal, more reliable performance.


5. The position of the stem is more direct.


6. Material of parts, flange and butt weld numbering dimensions can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs.


Specification for German standard right angle BELLOWS GLOBE VALVES


結構形式
BB-BG-OS & Y
驅動方式
手動
電動
設計標準
DIN3356
結構長度
DIN3202
連接法蘭
DIN2543-2545
試驗和檢驗
DIN3230


Performance Specification for German standard right angle BELLOWS GLOBE VALVES


公稱壓力(MPa)
殼體試驗壓力(MPa)
密封試驗壓力(MPa)
適用溫度(℃)
使用介質
1.6
2.4
1.76
≤350℃
水、蒸汽、油品等
2.5
3.75
2.75
4.0
6.0
4.4
6.4
9.6
7.04

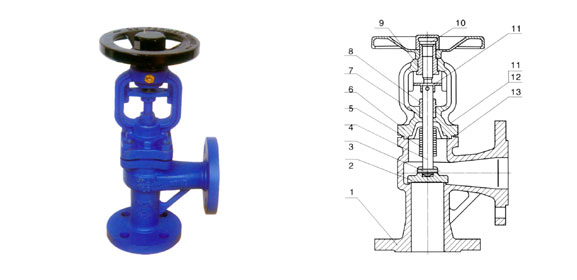

German standard right angle bellows globe valve main parts material
序號
名稱
材質
1
閥體
GS-C25 1.7363、1.4308、1.4408、1.4306、1.4301
2
閥瓣
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304、F316、F321、F304L、F316L
3
軸銷
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304、F316、F321、F304L、F316L
4
閥桿
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304、F316、F321、F304L、F316L
5
波紋管組件
1Cr18Ni9Ti、304、316
6
閥蓋
GS-C25 1.7363、1.4308、1.4408、1.4306、1.4301
7
填料
柔性石墨
8
填料壓蓋
GS-C25 1.7363、1.4308、1.4408、1.4306、1.4301
9
閥桿螺母
WCB、QT400-18
10
手輪
銅合金
11
雙頭螺栓
ASTM A193-B7、A320-B8、A193-B8M
12
六角螺母
ASTM A194-2H、A194-8、A194-8M
13
墊片
柔性石墨+不銹鋼

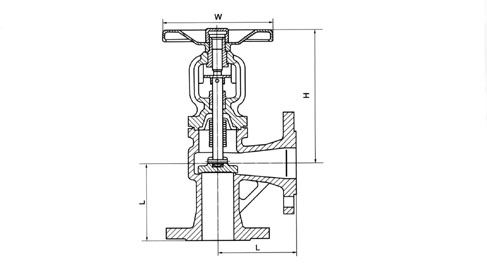

Main dimensions of German standard right angle BELLOWS GLOBE VALVES
型號
WJ44H-16
壓力等級
PN16
口徑
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
980
H
166
166
172
175
193
195
213
227
294
325
355
440
580
620
785
W
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
重量
4
5
6
10
13
18
25
30
40
50
100
180
300
450
670
型號
WJ44H-25
壓力等級
PN25
口徑
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
980
H
166
166
172
175
193
195
213
227
294
325
355
440
580
620
785
W
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
重量
4
5
6
11
14
19
27
32
43
53
110
200
330
480
700
型號
WJ44H-40
壓力等級
PN40
口徑
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
980
H
166
166
172
175
193
195
213
227
294
325
355
440
580
620
785
W
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
重量
4
5
6
11
14
20
28
33
45
55
120
210
350
500
730
