J41W stainless steel globe valve

J41W stainless steel globe valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

The stem axis of the J41W stainless steel flange valve is perpendicular to the sealing surface of the valve seat. Stem opening or closing stroke is relatively short, and has a very reliable cut-off action, making this valve is very suitable for medium cut-off or adjustment and throttling use.


Features of stainless steel globe valves


(1) the structure is simpler than the gate valve, and it is more convenient to manufacture and maintain.


(2) Sealing surface is not easy to wear and scratch, good sealing, no relative sliding between disc and valve body sealing surface when opening and closing, so wear and scratch are not serious, sealing performance is good, long service life.


(3) when the valve is opened and closed, the valve stroke is small, so the height of the cut-off valve is smaller than that of the gate valve, but the length of the valve is longer than that of the gate valve.


(4) the opening and closing moment is large, the opening and closing is more laborious, and the opening and closing time is the headmaster.


(5) fluid resistance is large, because the medium channel of the valve body is tortuous, the fluid resistance is large, and the power consumption is large.


(6) When the nominal pressure PN is less than 16 MPa, the medium flows downstream from the bottom of the valve disc; when the nominal pressure PN is more than 20 MPa, the medium flows downstream from the top of the valve disc to increase the seal energy. When used, the medium of the shut-off valve can only flow in one direction, and the flow direction can not be changed.


(7) the disc is always eroded at full opening.


Design and manufacturing standards


1, design and manufacture according to GB12235-89


2, the length of the structure is GB12221-89


3, flange size according to JB/G79-94


4. Valve check and test according to GB13927


Performance parameters of stainless steel cut-off valve


型號
公稱壓力
試驗壓力
工作溫度(℃)
適用介質(zhì)
強度(水)(Mpa)
密封(水)空氣(Mpa)
低壓密封空氣(Mpa)
J41W-16P(R)
1.6
2.4
1.8
0.6
≤200
NITRIC ACID
J41W-25P(R)
2.5
3.8
2.8
0.6
≤200
硝酸類
ACETIC ACID
醋酸類
NITRIV ACID
硝酸類
J41W-40P(R)
4
6
4.4
0.6
≤200
ACETIC ACID
J41W-64P(R)
6.4
9.6
7
0.6
≤200
醋酸類


Stainless steel cut-off valve main parts material


零件名稱
ZG1Cr18Ni9Ti系列
ZG00Cr18Ni10系列
ZG1Cr18Ni12Mo2Ti系列
ZG00Cr17Ni14Mo2系列
WCB系列
閥體/閥蓋
ZG1Cr18Ni9Ti
ZG00Cr18Ni10
ZG1Cr18Ni12Mo2Ti
ZG00Cr17Ni14Mo2
WCB
閥瓣
ZG1Cr18Ni9Ti
ZG00Cr18Ni10
ZG1Cr18Ni12Mo2Ti
ZG00Cr17Ni14Mo2
1Cr13
閥桿
ZG1Cr18Ni9Ti
00Cr18Ni10
1Cr18Ni12Mo2Ti
00Cr17Ni14Mo2
1Cr13
填料
PTFE編織
PTFE編織
PTFE編織
PTFE編織
石墨
墊片
304+PTFE
304L+PTFE
316+PTFE
316L+PTFE
石墨+304
壓蓋
ZG1Cr18Ni9Ti
ZG00Cr18Ni10
ZG1Cr18Ni12Mo2Ti
ZG00Cr17Ni14Mo2
WCB
填料壓環(huán)
1Cr18Ni9Ti
00Cr18Ni10
1Cr18Ni12Mo2Ti
00Cr17Ni14Mo2
1Cr13
螺栓
1Cr17Ni2
1Cr17Ni2
1Cr17Ni2
1Cr17Ni2
35CrMoA
螺母
1Cr18Ni9Ti
1Cr18Ni9Ti
1Cr18Ni9Ti
1Cr18Ni9Ti
45

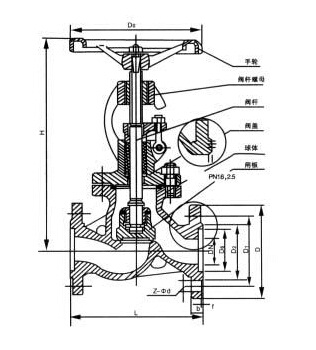

Main dimensions of stainless steel globe valves


J41W stainless steel globe valve -1.6MPa


尺寸
DN
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
mm
130
150
160
180
200
230
290
310
350
400
480
600
650
750
850
950
H
mm
200
243
253
280
312
321
325
355
415
460
510
700
975
1115
1250
1380
W
mm
120
140
160
160
200
200
240
240
280
320
360
560
600
700
800
900
重量
kg
5
6.5
7
13.5
16
32
45
60
80
107
134
268
449
663
750
1170


J41W stainless steel globe valve -2.5MPa


尺寸
DN
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
mm
130
150
160
180
200
230
290
310
350
400
480
600
650
750
850
950
H
mm
200
243
253
280
312
321
325
355
415
460
510
700
975
1115
1250
1380
W
mm
120
140
160
160
200
200
240
240
280
320
360
560
600
700
800
900
重量
kg
5
6.5
7
13.5
16
32
45
60
80
107
134
268
449
663
750
1170


J41W stainless steel globe valve -4.0MPa


尺寸
DN
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
mm
130
150
160
180
200
230
290
310
350
400
480
600
650
750
850
950
H
mm
200
243
253
280
312
321
325
355
415
460
510
700
975
1115
1250
1380
W
mm
120
140
160
160
200
200
240
240
280
320
360
560
600
700
800
900
重量
kg
5
6.5
7
13.5
16
32
45
60
80
107
134
268
491
705
850
1234
